LM43600AQPWPRQ1 DC Switching Regulator IC With 1V 1 Output 500mA

Brand Name : original

Model Number : LM43600AQPWPRQ1

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Function : Step-Down

Output Type : Adjustable

Number of Outputs : 1

Voltage - Input (Min) : 3.5V

Voltage - Input (Max) : 36V

Voltage - Output (Min/Fixed) : 1V

Voltage - Output (Max) : 28V

Current - Output : 500mA

Frequency - Switching : 200kHz ~ 2.2MHz

Synchronous Rectifier : Yes

Contact Now

LM43600AQPWPRQ1 DC Switching Regulators IC With 1V 1 Output 500mA​

Buck Switching Regulator IC Positive Adjustable 1V 1 Output 500mA 16-PowerTSSOP (0.173", 4.40mm Width)

Specifications of LM43600AQPWPRQ1

TYPE DESCRIPTION
Category Integrated Circuits (ICs)
Voltage Regulators - DC DC Switching Regulators
Mfr Texas Instruments
Series Automotive, AEC-Q100, SIMPLE SWITCHER®
Package Tape & Reel (TR)
Product Status Active
Function Step-Down
Output Configuration Positive
Topology Buck
Output Type Adjustable
Number of Outputs 1
Voltage - Input (Min) 3.5V
Voltage - Input (Max) 36V
Voltage - Output (Min/Fixed) 1V
Voltage - Output (Max) 28V
Current - Output 500mA
Frequency - Switching 200kHz ~ 2.2MHz
Synchronous Rectifier Yes
Operating Temperature -40°C ~ 125°C (TJ)
Mounting Type Surface Mount
Package / Case 16-PowerTSSOP (0.173", 4.40mm Width)
Supplier Device Package 16-HTSSOP
Base Product Number LM43600

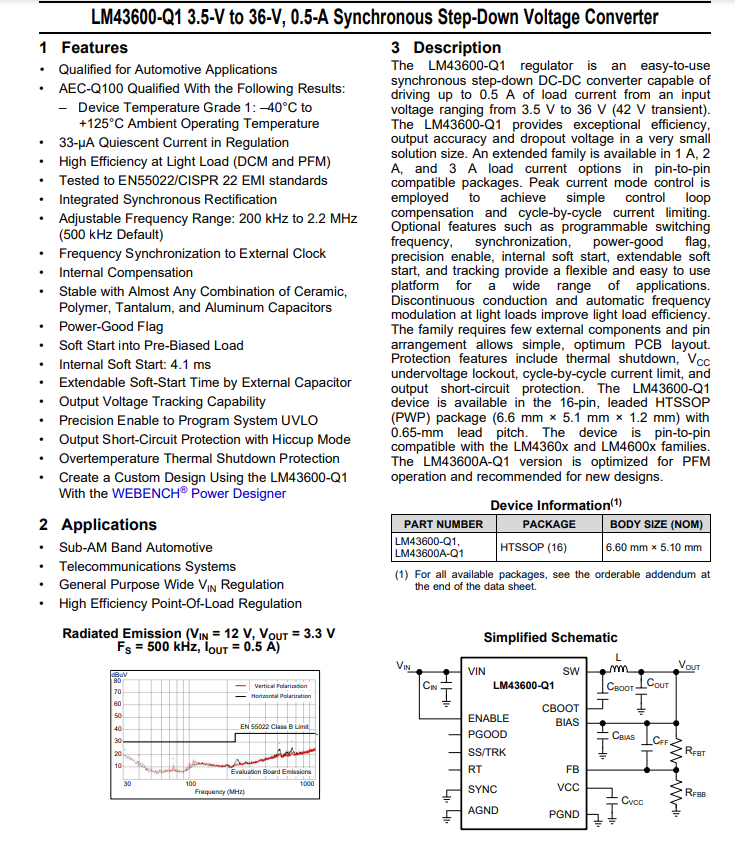

Features of LM43600AQPWPRQ1


• Qualified for Automotive Applications
• AEC-Q100 Qualified With the Following Results:
– Device Temperature Grade 1: –40°C to +125°C Ambient Operating Temperature
• 33-µA Quiescent Current in Regulation
• High Efficiency at Light Load (DCM and PFM)
• Tested to EN55022/CISPR 22 EMI standards
• Integrated Synchronous Rectification
• Adjustable Frequency Range: 200 kHz to 2.2 MHz (500 kHz Default)
• Frequency Synchronization to External Clock
• Internal Compensation
• Stable with Almost Any Combination of Ceramic,Polymer, Tantalum, and Aluminum Capacitors
• Power-Good Flag
• Soft Start into Pre-Biased Load
• Internal Soft Start: 4.1 ms
• Extendable Soft-Start Time by External Capacitor
• Output Voltage Tracking Capability
• Precision Enable to Program System UVLO
• Output Short-Circuit Protection with Hiccup Mode
• Overtemperature Thermal Shutdown Protection
• Create a Custom Design Using the LM43600-Q1 With the WEBENCH® Power Designer

Applications of LM43600AQPWPRQ1


• Sub-AM Band Automotive
• Telecommunications Systems
• General Purpose Wide VIN Regulation
• High Efficiency Point-Of-Load Regulation

Environmental & Export Classifications of LM43600AQPWPRQ1

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
