TXB0104RGYR Voltage Level Translator Bidirectional 1 Circuit 4 Channel 100Mbps

Product Categories
SZ ADE Electronics Co., Ltd
Contact Now

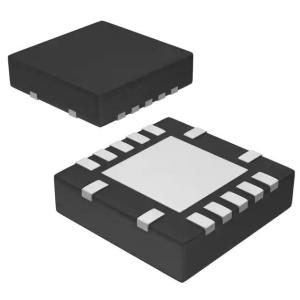

TXB0104RGYR Voltage Level Translator Bidirectional 1 Circuit 4 Channel 100Mbps

Brand Name : original

Model Number : TXB0104RGYR

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Number of Circuits : 1

Channels per Circuit : 4

Voltage - VCCA : 1.2 V ~ 3.6 V

Voltage - VCCB : 1.65 V ~ 5.5 V

Input Signal : -

Package / Case : 14-VFQFN Exposed Pad

Output Type : Tri-State, Non-Inverted

Data Rate : 100Mbps

Contact Now

TXB0104RGYR Voltage Level Translator Bidirectional 1 Circuit 4 Channel 100Mbps


IC TRANSLTR BIDIRECTIONAL 14VQFN

Specifications of TXB0104RGYR

TYPE DESCRIPTION
Category Translators, Level Shifters
Mfr Texas Instruments
Series -
Package Tape & Reel (TR)
Product Status Active
Translator Type Voltage Level
Channel Type Bidirectional
Number of Circuits 1
Channels per Circuit 4
Voltage - VCCA 1.2 V ~ 3.6 V
Voltage - VCCB 1.65 V ~ 5.5 V
Input Signal -
Output Signal -
Output Type Tri-State, Non-Inverted
Data Rate 100Mbps
Operating Temperature -40°C ~ 85°C (TA)
Features Auto-Direction Sensing
Mounting Type Surface Mount
Package / Case 14-VFQFN Exposed Pad
Supplier Device Package 14-VQFN (3.5x3.5)
Base Product Number TXB0104

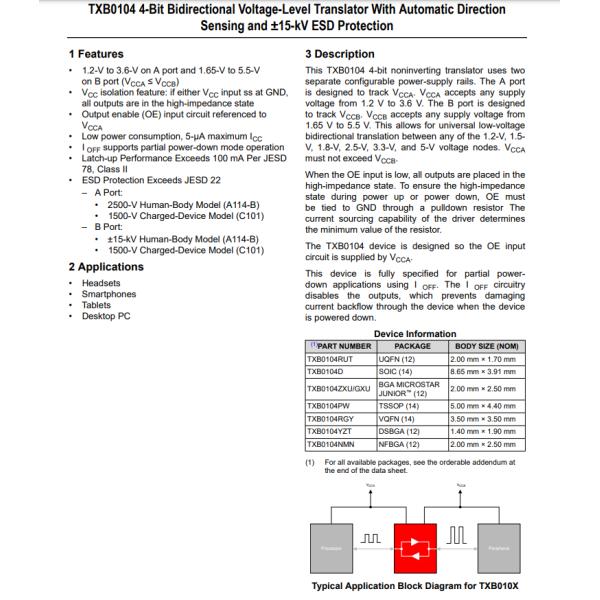

Features of TXB0104RGYR


• 1.2-V to 3.6-V on A port and 1.65-V to 5.5-V on B port (VCCA ≤ VCCB)
• VCC isolation feature: if either VCC input ss at GND,all outputs are in the high-impedance state
• Output enable (OE) input circuit referenced to VCCA
• Low power consumption, 5-μA maximum ICC
• I OFF supports partial power-down mode operation
• Latch-up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Protection Exceeds JESD 22
– A Port:
• 2500-V Human-Body Model (A114-B)
• 1500-V Charged-Device Model (C101)
– B Port:
• ±15-kV Human-Body Model (A114-B)
• 1500-V Charged-Device Model (C101)

Applications of TXB0104RGYR


• Headsets
• Smartphones
• Tablets
• Desktop PC


Environmental & Export Classifications of TXB0104RGYR

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
