HCPL-181-00AE Optoiso Switching Regulator IC 3.75KV TRANS 4MINIFLAT

Name: HCPL18100AE Optoiso Switching Regulator IC 375KV TRANS 4MINIFLAT
Brand: original
Price: 1 USD

Brand Name : original

Model Number : HCPL-181-00AE

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T, L/C

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Product Status : Active

Number of Channels : 1

Voltage - Isolation : 3750Vrms

Current Transfer Ratio (Min) : 80% @ 5mA

Current Transfer Ratio (Max) : 160% @ 5mA

Output Type : Transistor

Rise / Fall Time (Typ) : 4µs, 3µs

Input Type : DC

Contact Now

HCPL-181-00AE Purpose Relays Optoiso 3.75kv Trans 4miniflat

HCPL-181-00AE Purpose Relays Optoiso 3.75kv Trans 4miniflat

Optoisolator Transistor Output 3750Vrms 1 Channel 4-Mini-Flat

Specifications of HCPL-181-00AE

TYPE	DESCRIPTION
Category	Isolators
	Optoisolators
	Transistor, Photovoltaic Output Optoisolators
Mfr	Broadcom Limited
Series	-
Package	Tape & Reel (TR)
	Cut Tape (CT)
	Digi-Reel®
Product Status	Active
Number of Channels	1
Voltage - Isolation	3750Vrms
Current Transfer Ratio (Min)	80% @ 5mA
Current Transfer Ratio (Max)	160% @ 5mA
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	4µs, 3µs
Input Type	DC
Output Type	Transistor
Voltage - Output (Max)	80V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	50 mA
Vce Saturation (Max)	200mV
Operating Temperature	-55°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	4-SMD, Gull Wing
Supplier Device Package	4-Mini-Flat
Base Product Number	HCPL-181

Features of HCPL-181-00AE

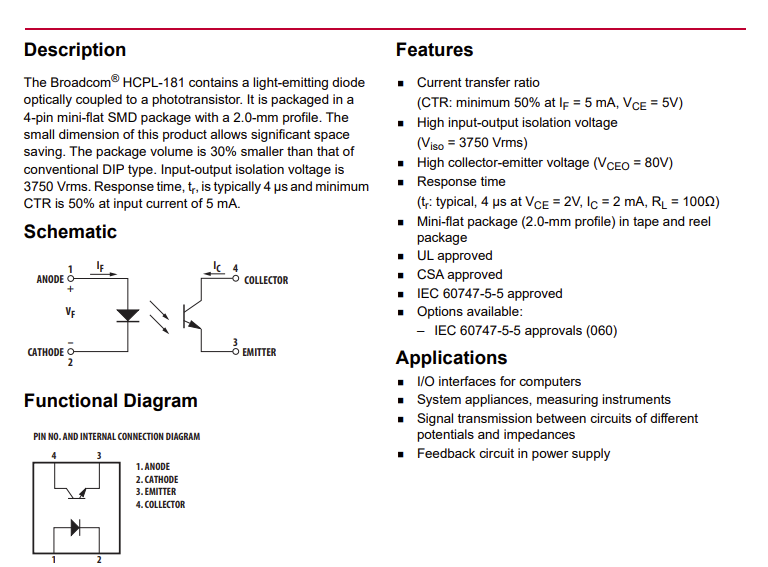

• Current transfer ratio (CTR: minimum 50% at IF = 5 mA, VCE = 5V)

• High input-output isolation voltage (Viso = 3750 Vrms)

• High collector-emitter voltage (VCEO = 80V)

• Response time (tr: typical, 4 μs at VCE = 2V, IC = 2 mA, RL = 100• )

• Mini-flat package (2.0-mm profile) in tape and reel package

• UL approved

• CSA approved

• IEC 60747-5-5 approved

• Options available:

– IEC 60747-5-5 app

Applications of HCPL-181-00AE

• I/O interfaces for computers

• System appliances, measuring instruments

• Signal transmission between circuits of different potentials and impedances

• Feedback circuit in power supply

Environmental & Export Classifications of HCPL-181-00AE

ATTRIBUTE	DESCRIPTION
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.49.8000
