CD74HC123NSR Monostable Multivibrator 25 ns 16-SO

Product Categories
SZ ADE Electronics Co., Ltd
Contact Now

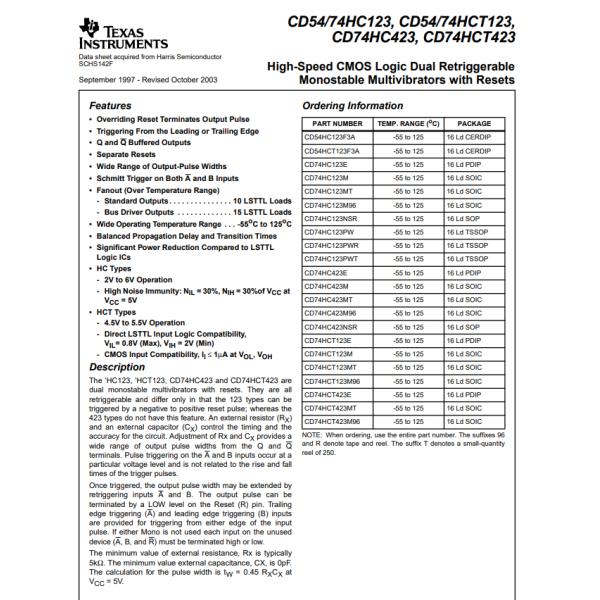

CD74HC123NSR Monostable Multivibrator 25 ns 16-SO

Brand Name : original

Model Number : CD74HC123NSR

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T

Supply Ability : 1000

Delivery Time : 3-5ddays

Packaging Details : carton box

Number of Circuits : 6

Number of Inputs : 1

Voltage - Supply : 3V ~ 18V

Current - Quiescent (Max) : 4µA

Current - Output High, Low : 4.3mA, 24mA

Input Logic Level - Low : 1V ~ 2.5V

Input Logic Level - High : 4V ~ 12.5V

Max Propagation Delay @ V, Max CL : 50ns @ 15V, 50pF

Contact Now

CD74HC123NSR Monostable Multivibrator 25 ns 16-SO

Specifications of CD74HC123NSR

TYPE DESCRIPTION
Category Integrated Circuits (ICs)
Logic
Multivibrators
Mfr Texas Instruments
Series 74HC
Package Tape & Reel (TR)
Cut Tape (CT)
Product Status Active
Logic Type Monostable
Independent Circuits 2
Schmitt Trigger Input No
Propagation Delay 25 ns
Current - Output High, Low 5.2mA, 5.2mA
Voltage - Supply 2 V ~ 6 V
Operating Temperature -55°C ~ 125°C
Mounting Type Surface Mount
Package / Case 16-SOIC (0.209", 5.30mm Width)
Supplier Device Package 16-SO
Base Product Number 74HC123


Features of CD74HC123NSR

• Overriding Reset Terminates Output Pulse
• Triggering From the Leading or Trailing Edge
• Q and Q Buffered Outputs
• Separate Resets
• Wide Range of Output-Pulse Widths
• Schmitt Trigger on Both A and B Inputs
• Fanout (Over Temperature Range)
- Standard Outputs . . . . . . . . . . . . . . . 10 LSTTL Loads
- Bus Driver Outputs . . . . . . . . . . . . . 15 LSTTL Loads
• Wide Operating Temperature Range . . . -55oC to 125oC
• Balanced Propagation Delay and Transition Times
• Significant Power Reduction Compared to LSTTL Logic ICs
• HC Types
- 2V to 6V Operation
- High Noise Immunity: NIL = 30%, NIH = 30%of VCC at VCC = 5V
• HCT Types
- 4.5V to 5.5V Operation
- Direct LSTTL Input Logic Compatibility, VIL= 0.8V (Max), VIH = 2V (Min)
- CMOS Input Compatibility, Il ≤ 1µA at VOL, VOH


Applications of CD74HC123NSR


The ’HC123, ’HCT123, CD74HC423 and CD74HCT423 are dual monostable multivibrators with resets.


Environmental & Export Classifications of CD74HC123NSR

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
